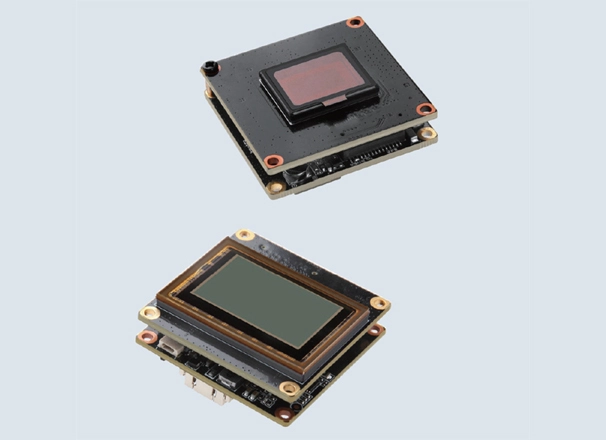

Low light night vision modules utilize advanced lowlight image sensor chips with ultra-high sensitivity, low power consumption, compactness and expandability. All movements of Low light night vision modules provide analog and digital video signals. Ultra-high sensitivity: The movement uses an f1.4 lens to provide clear continuous imaging (25 frames/sec) at 6.5 x 10-4 (lux), which is close to the level of super ii icmos;
1. Black and white night vision module EXA2186
| Index | parameter |
| Target surface size | 1 inch |
| Effective pixels (maximum value) | 800H × 600V (horizontal × Vertical) |
| Frame rate | 25fp |
| Illumination | 1 × 10−4Lx@25Hz |
| Exposure mode | roll |
| Gain control | Automatic or manual |
| Digital output | 8bits parallel |
| Analog output | PAL |
| Communication control | UAR |
| Synchronous mode | internal synchronization |
| Working voltage | 2.5V~4.2V or DC5V |
| Size | Φ34×12 mm |
| Working temperature | -40℃~ +55 |
| Storage temperature | -55℃~ +70℃ |
2. Color night vision module EXA211024
| Index | parameter |
| Target surface size | 1 inch |
| Effective pixels (maximum value) | 1024H × 768V (horizontal × Vertical) |
| Frame rate | 25fp |
| Ollumination | 1 × 10−4Lx@25Hz |
| Exposure mode | rolling |
| Gain control | Automatic or manual |
| Digital output | 8bits parallel |
| Analog output | PAL |
| Communication control | UART |
| Synchronous mode | internal synchronization |
| Working voltage | 2.5V~4.2V or DC5V |
| Size | Φ34×12 mm |
| Working temperature | -40℃~ +55 |
| Storage temperature | -55℃~ +70℃ |
1. Black and white night vision module EXA2186
Supports single 18650 battery power supply;
Support DC5V power supply;
Minimum operating environment illumination: 1 × 10 − 4Lx@25Hz ;
Output analog video PAL,
Support UART communication;
Supports image transmission through WIFI, and the switch of WIFI can be controlled through the menu.
2. Color night vision module EXA211024
Supports single 18650 battery power supply;
Support DC5V power supply;
Minimum operating environment illumination: 1 × 10 − 4Lx@25Hz ;
Output analog video PAL,
Support UART communication;
Supports image transmission through WIFI, and the switch of WIFI can be controlled through the menu.
