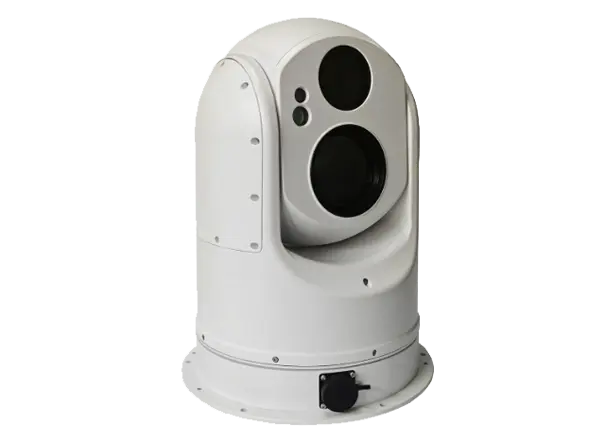

Gyroscopic stabilized photoelectric high-definition pan tilt camera, equipped with high-performance, low illumination day and night dual-purpose high-definition camera and long focal length high-definition lens, laser assisted lighting; Combining a thermal imaging system that is not affected by harsh weather conditions such as fog and haze, and using scientific methods to meet 24/7 monitoring in any weather conditions.
| Thermal imaging camera | Imager | uncooled detector |
| Effective Pixels | 640*480 | |
| focal length | f=75mm | |
| Frame rate | 25 frames per second | |
| Visible light camera | Imager | 1/1.8” inch progressive scanning CMOS image sensor |
| Effective Pixels | 1920×1080P 25 frames with 2 million pixels | |
| illumination | Starlight level ultra-low illumination | |
| focal length | 15mm-315mm | |
| Signal-to-noise ratio | ≥55dB | |
| Wide dynamic range | 120d | |
| Strong light suppression | On/off | |
| Backlight compensation | On/off | |
| Pan tilt function | Horizontal range | 360 ° continuous rotation |
| Horizontal speed | 0.05°～400°/s | |
| Pitch range | -Rotate from 40 ° to+90 ° | |
| vertical velocity | 0.05°～200°/s | |
| Proportional doubling | support | |
| Image stabilization function | Gyroscopic stability | Biaxial |
| Steady state accuracy | 0.1° | |
| Maximum carrier following speed | 100 °/second | |
| Other functions | Audio input/output | support |
| Alarm input/output | 1 channel | |
| External data interface | RS422 | |
| laser ranging | Optional configuration | |
| Laser ranging distance | 1000m (optional) | |
| Laser ranging accuracy | 1m | |
| source | DC24V 5A±15%, 50Hz | |
| consume power | Maximum power 60W | |
| Protection level | IP67 | |
| electromagnetic compatibility | 6KV GB/T 17626.5 -4 | |
| working temperature | -40℃～70 ℃ | |
| Working humidity | Humidity less than 90% | |
| weight | 15KG |
1/1.8 200W 52x HD visible light, 640 * 480 75mm thermal imaging dual spectral network camera;
1 kilometer laser ranging (optional);
Horizontal and pitch biaxial gyroscope mechanical stabilization;
Horizontal 360 ° continuous rotation, pitch -40 ° to+90 ° rotation;
3D positioning amplification;
256 preset positions;
Supporting optical fog penetration;
Support H.265/H.264/MJPEG video compression algorithm;
Supports GB/T 28181 and ONVIF protocols;
All metal structure, anti fog, waterproof, anti-corrosion, earthquake resistant, with a protection level of IP67;
Lightning protection level: 6KV.
